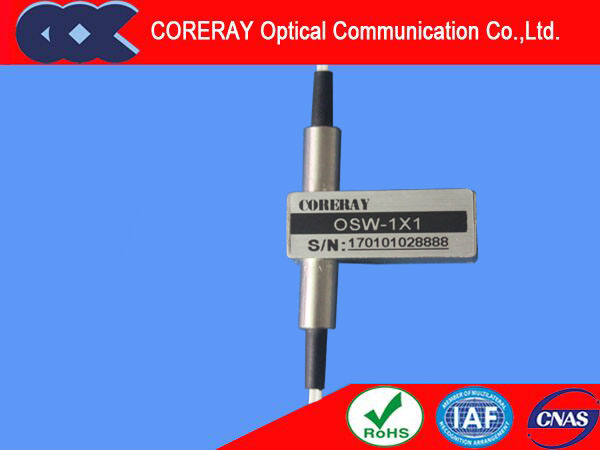

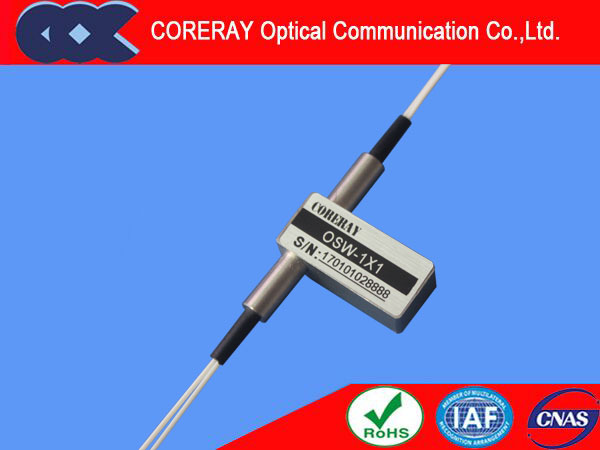

1x1 Fiber Optic Switch
This 1x1 optical switch features low insertion loss, low driving power, and high switching speed. The switch is designed for use in optical fiber communication networks and measurement instruments.
Technical Specifications
Overview
High-Performance 1x1 Optical Switch
This 1x1 optical switch is engineered for precise signal routing in demanding fiber optic communication systems. Featuring a compact design and robust construction, it offers exceptional reliability with a durability rating of 10 million cycles. It provides low insertion loss and high cross-talk isolation, making it an ideal solution for network reconfiguration, signal monitoring, and optical testing applications.
Optical Performance
Key Performance Metrics
0.6 dB
Insertion Loss
55 dB
Channel Cross Talk
55 dB
Return Loss
Signal Stability Specs
- WDL: < 0.15 dB
- PDL: < 0.02 dB
- TDL: < 0.20 dB
- Repeatability: ± 0.03 dB
- Operating Wavelengths
- 850nm1310nm1490nm1550nm1625nm
Electrical & Physical
Electric Configuration
| Type | Pin | Electric Drive | Status Sensor |
|---|---|---|---|
| 1x1 Channel | 1 | 5, 6 | 10, 2-3, 3-4 |
- Switching Speed
- 5 ms
- Drive Voltage
- 3V5V
- Power Handling
- 500 mW
- Durability
- 10 million cycles
- Dimensions (LxWxH)
- 27 x 12.6 x 8.5 mm
Environmental
- Operating Temperature
- -20 to +80 °C
- Storage Temperature
- -40 to +85 °C
