1800W 4-Channel Class AB Car Audio Amplifier
This Class AB car amplifier delivers up to 1800W through four channels. It allows for flexible speaker configurations and delivers high-quality audio amplification for car audio systems.
Technical Specifications
Overview
High-Performance 4-Channel Class AB Amplifier

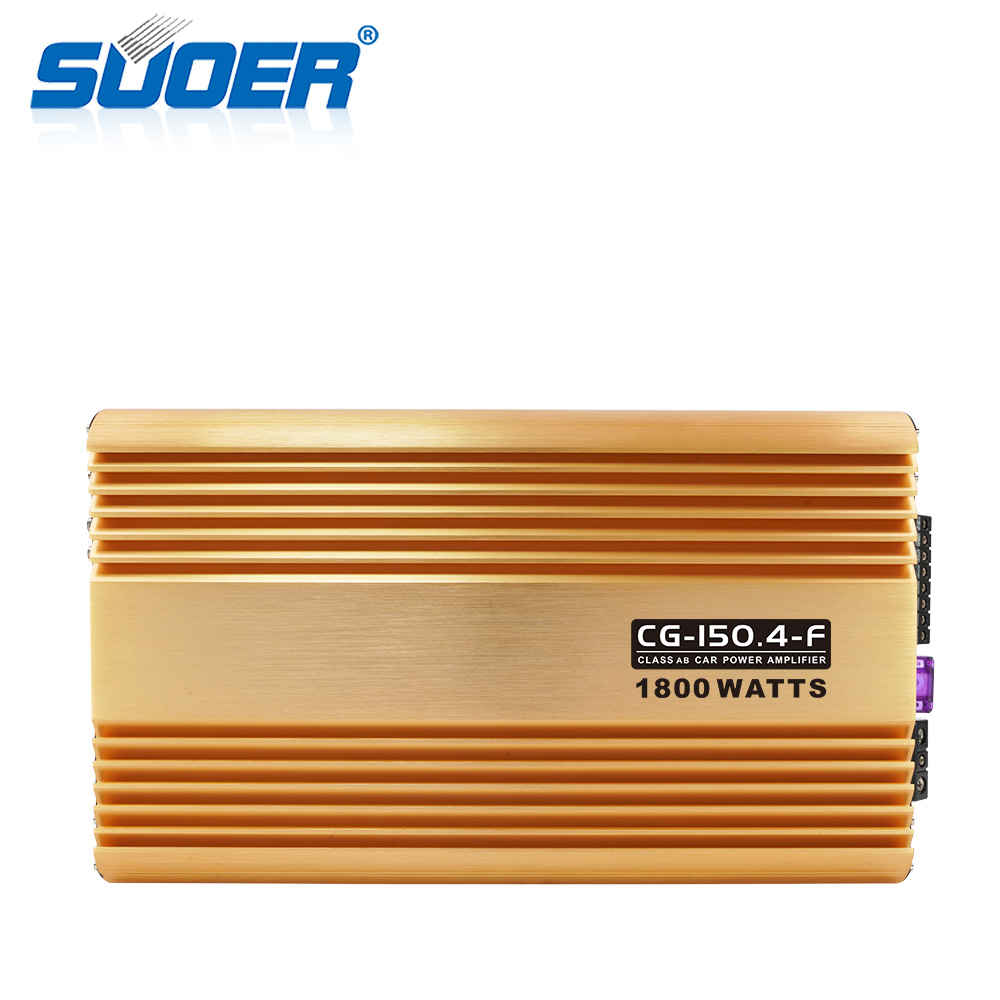

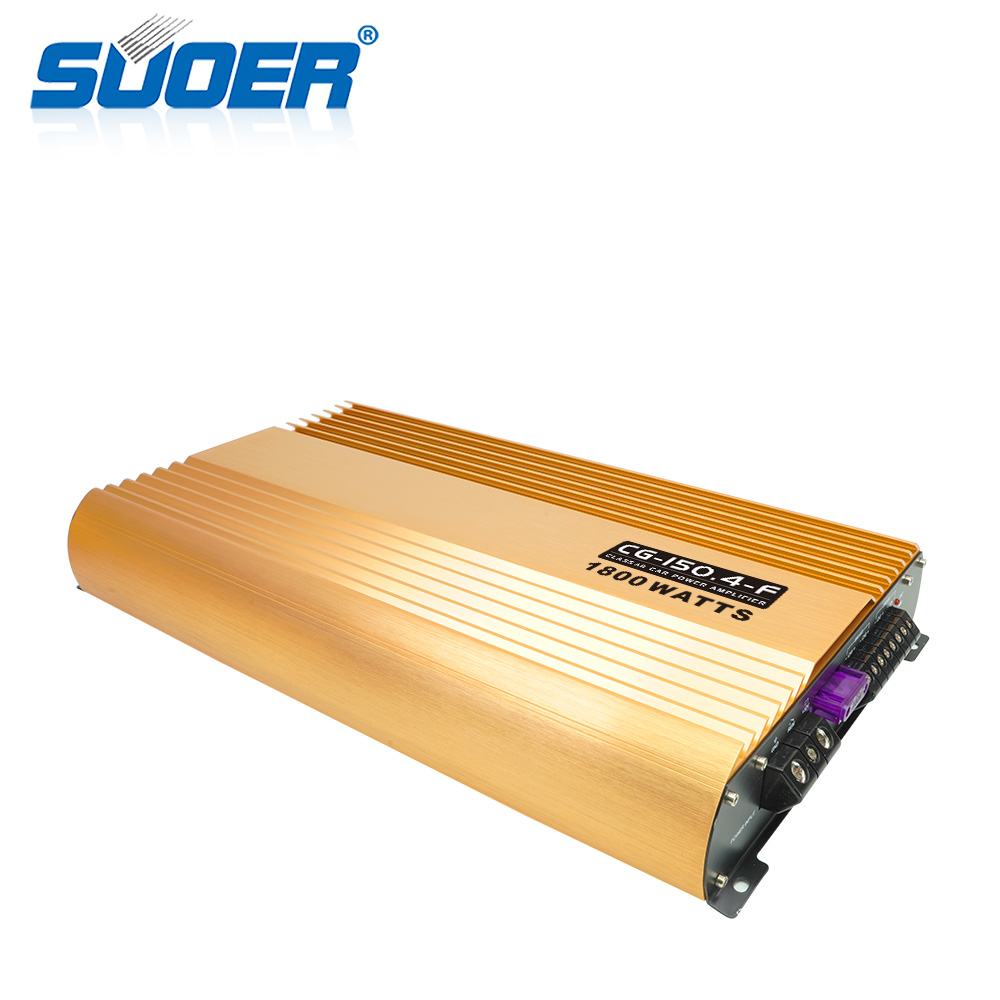

The CG-150.4-F is a versatile 1800W full-frequency car amplifier designed for high-fidelity audio reproduction. Utilizing a Class AB architecture, it provides a perfect balance between thermal efficiency and sound clarity, making it ideal for driving a wide range of speakers and subwoofers. With comprehensive protection circuitry and adjustable tuning controls, this amplifier ensures reliable, professional-grade performance in any automotive environment.
Performance Metrics
Power Output Ratings
150 W x 4
RMS Power (4 Ohms)
260 W x 4
RMS Power (2 Ohms)
300 W x 2
Bridged Power (4 Ohms)
Technical Specifications
Amplifier Class
Class ABFull Frequency
- Frequency Response
- 15Hz - 30kHz (-3dB)
- Signal to Noise Ratio
- >92 dB
- THD & Noise
- <0.01%
- Input Sensitivity
- 0.2-6V
Audio Tuning
Crossover & Filters
| Feature | Range/Value |
|---|---|
| High Pass Frequency | 18Hz - 2.5kHz |
| Low Pass Frequency | 18Hz - 2.5kHz |
| Bass Boost Frequency | 45Hz |
| Bass Lift Options | 0dB, 6dB, 12dB |
Power & Protection
Safety Systems
- Thermal overload protection
- Short circuit protection
- DC offset protection
- LED status indicators (Green: Normal, Red: Fault)
- Working Voltage
- 10-16V DC
- Integrated Fuse
- 1 x 100A
Physical Dimensions
- Dimensions (L x W x H)
- 429mm x 240mm x 60mm
- Net Weight
- 4.45 kg
Connectivity
- Input/Output Terminals
- Audio Signal InputPower Input TerminalHorn Output Terminal2CH/4CH Mode Switch
