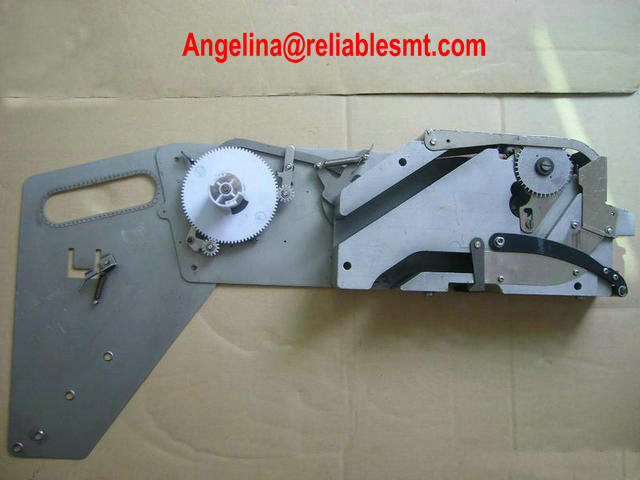

16mm Component Feeder for Pick and Place Machines
This 16mm component feeder is designed for use with pick and place machines. It ensures reliable delivery of components to the pick-up point, enhancing the efficiency of SMT assembly lines.
Technical Specifications
Product Overview
Precision 16mm Component Feeder
This high-quality component feeder is engineered for automated pick and place machinery, ensuring reliable and accurate delivery of 16mm components during SMT assembly. Designed for durability and consistent performance, it helps minimize downtime and maintains high throughput in electronic manufacturing environments. The unit is built with precision mechanics to support seamless integration into existing assembly lines.
Compatibility
- Supported Feeder Widths
- 8mm12mm16mm24mm32mm44mm56mm
Maintenance & Spare Parts
Related Components
| Part Name | Reference ID |
|---|---|
| Solenoid Valve | VA01PEP34-1U / J6702048A |
| Planet Lever Ass'y | J9065100A |
| Forming Bracket Ass'y | J9065101A |
| Forming Gear Ass'y | J9065102A |
| Locker Ass'y | J9065103A |
| Vinyl Guide Roller | J7265130A |
Nozzle Specifications
Available Nozzle Types
- 0.5 / 0.25 mm (CN030)
- 0.75 / 0.38 mm (CN040)
- 1.2 / 0.65 mm (CN065)
- 2.2 / 1.4 mm (CN140)
- 3.6 / 2.2 mm (CN220)
- 6.2 / 4.0 mm (CN400N)
- 9.0 / 7.5 mm (CN750)
- 12.7 / 11.0 mm (CN1100)
Service Benefits
Key Features
Large Stock AvailabilityFast DeliveryCompetitive PricingOriginal New ConditionProfessional Support
