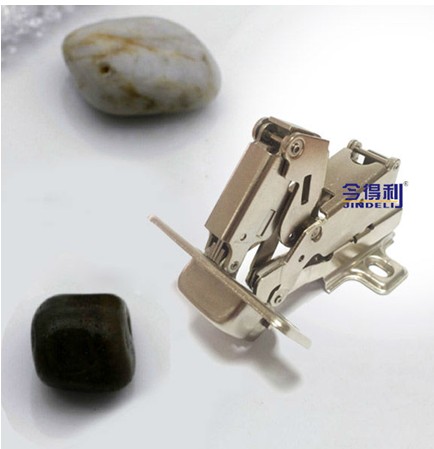

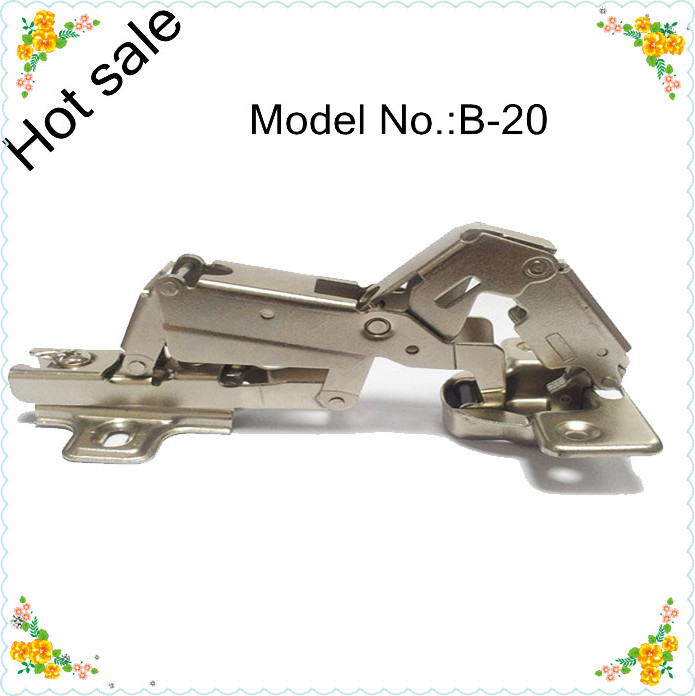

165-Degree Concealed Cabinet Hinge
This concealed cabinet hinge is designed with a 165-degree opening angle for frameless cabinets. It is constructed from durable steel and features a clip-on mechanism for easy installation and removal.
Technical Specifications
Product Overview
High-Performance Concealed Hinge
This 165-degree concealed cabinet hinge is designed to provide wide, unobstructed access to cabinet interiors, making it an ideal choice for modern kitchen and furniture applications. Engineered for durability, the hinge features a robust steel or zinc alloy construction with a multi-layer nickel-plated finish to ensure long-term corrosion resistance. With its versatile compatibility for door thicknesses ranging from 12mm to 32mm, this hinge offers a reliable and adjustable solution for professional cabinetry installation.
Technical Specifications
Opening Angle
165 degrees
Opening Angle
Hinge Cup Dimensions
| Dimension | Value | Unit |
|---|---|---|
| Cup Diameter | 35 | mm |
| Cup Depth | 11.3 | mm |
Material & Finish
- Steel or Zinc Alloy construction
- Brass plated base
- Nickel plated surface
- Anti-rust oil treatment
- Compatible Door Thickness
- 12 - 32 mm
- Hinge Configuration Types
- Full CoverHalf CoverInsert
Ordering Information
- Minimum Order Quantity
- 5000 pcs
- Delivery Time
- 7-15 days after deposit
