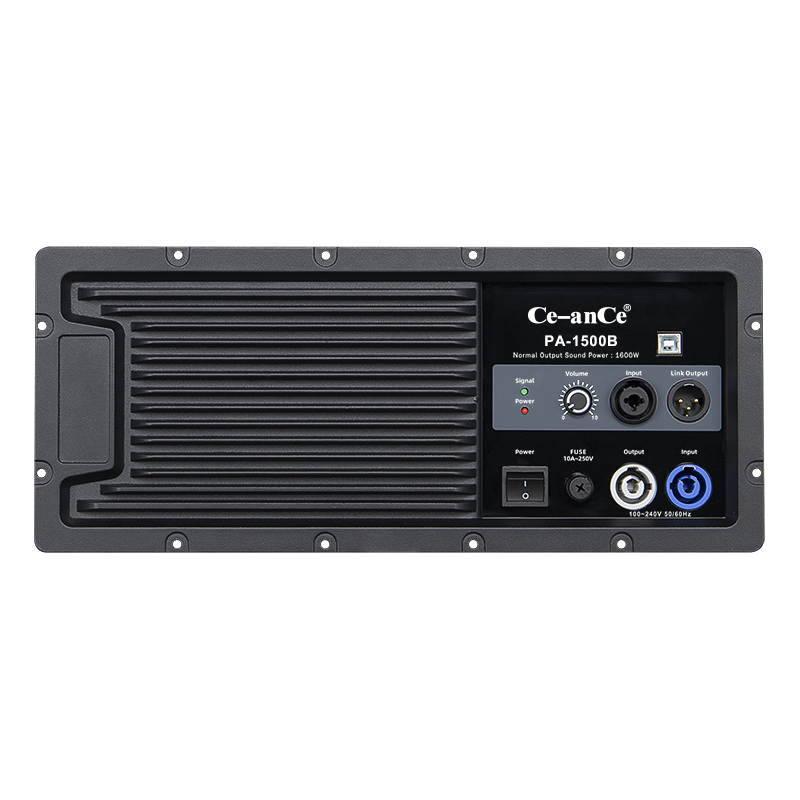

1600W Power Amplifier Module

This power amplifier module provides a normal output sound power of 1600W. It is equipped with signal and power indicators, a volume control knob, and input and link output connectors.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

Advanced Digital Amplifier Module

This high-performance amplifier module utilizes advanced PWM switching technology to deliver efficient and reliable power. Designed with Class D circuitry, it ensures ultra-low distortion and a full-band frequency response for professional audio applications. The unit features integrated thermal management with a robust heatsink and fan system, making it suitable for demanding installation environments.

Technical Performance

Key Audio Metrics

100 dB

Signal To Noise Ratio

0.05 %

THD+N

800

Damping Factor

Frequency Response: 20 Hz - 20 kHz (+0/-0.25 dB)
Output Circuitry: Class D - full band with PWM modulator

Physical Specifications

Module Dimensions: 380 x 160 x 80 mm
Net Weight: 2.5 kg
Cooling System: HeatsinkActive Fan

Power & Compatibility

Power Supply Options

AC220V/50Hz ±10%
AC110V/60Hz ±10%

Logistics

Shipping & Packaging

Metric	Value
Package Size	520 x 320 x 100 mm
Gross Weight	6.000 kg
Packaging Type	PCB + Steel
