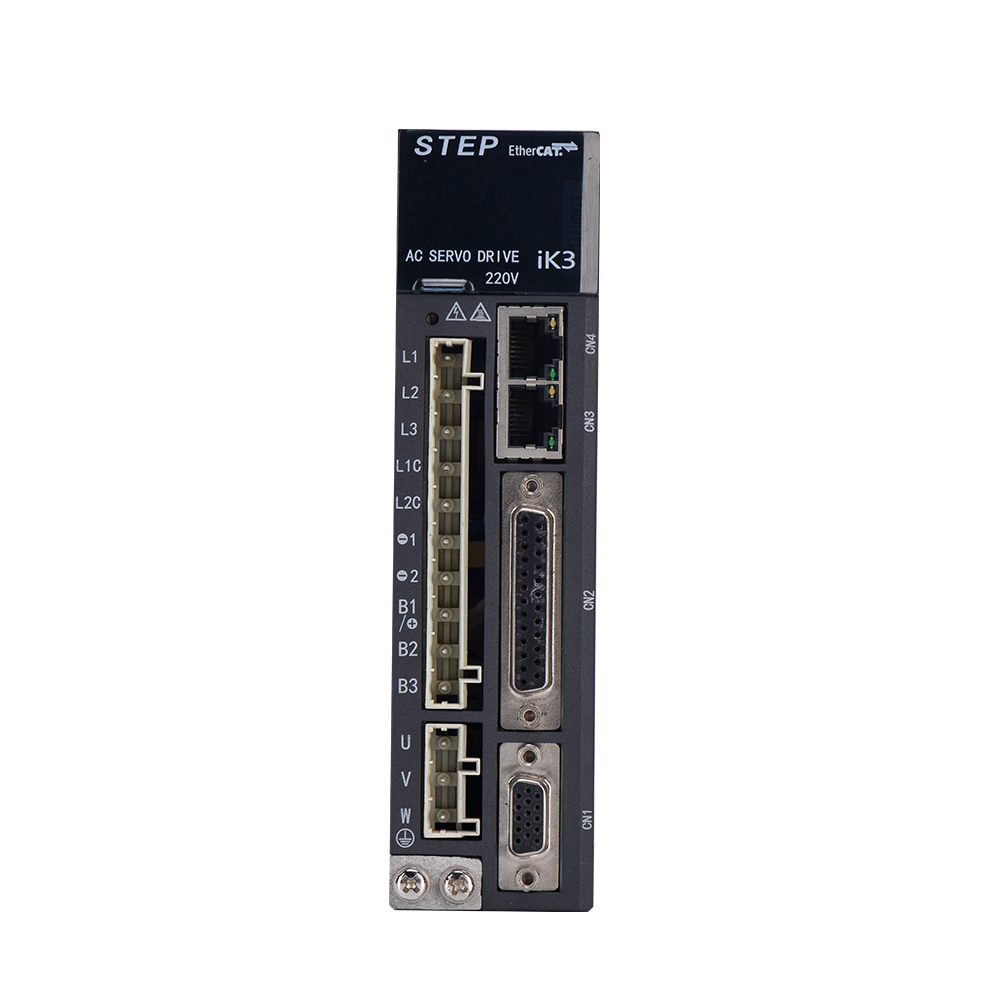

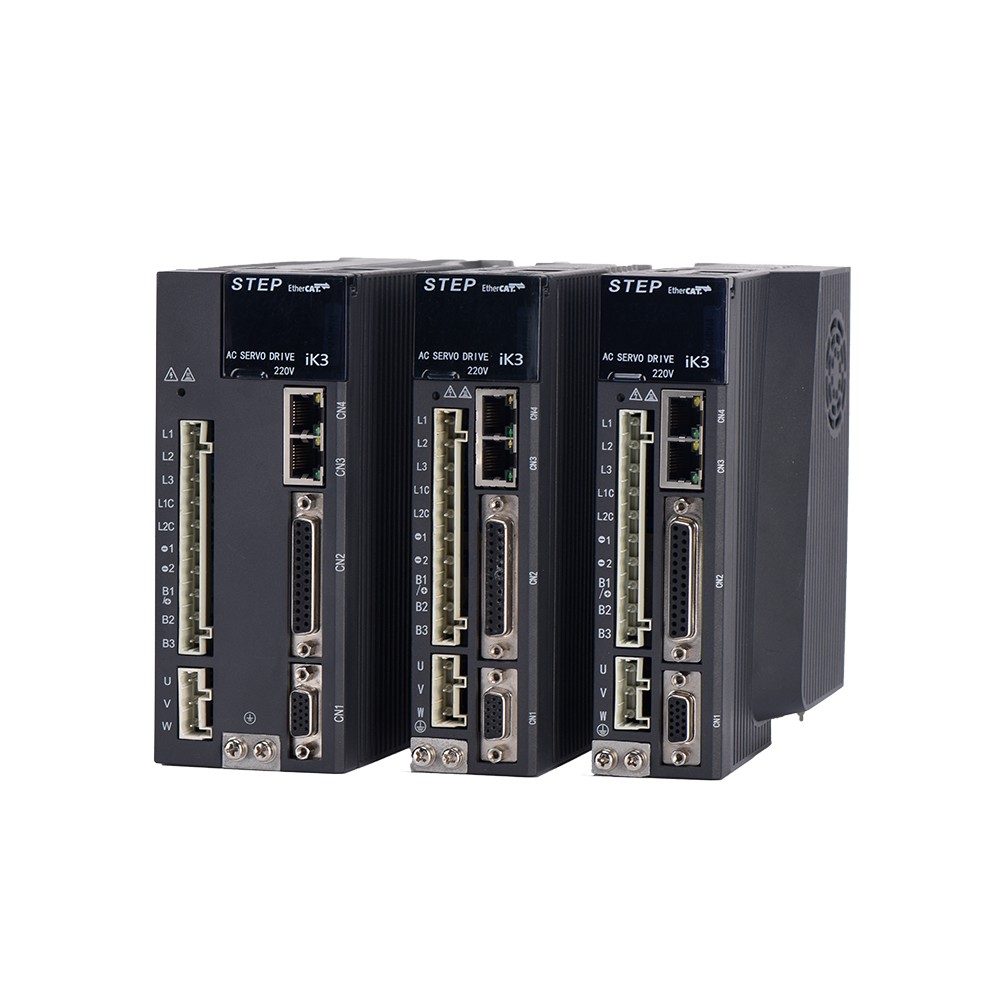

1.5kW Universal Bus Servo Drive 220V
This 1.5kW servo drive is a universal bus type designed for precise motion control applications. Operating at 220V, it supports EtherCAT communication for seamless integration with industrial automation systems.
Technical Specifications
Product Overview
High-Performance Universal Bus Servo Drive
This 1.5kW universal bus servo drive provides industry-leading precision through high-frequency loop responses and dual-algorithm processing. It ensures seamless integration with industrial automation via standard EtherCAT and CANopen protocols. Designed for demanding environments, it features robust environmental protection, comprehensive safety functions, and advanced vibration suppression for reliable motion control.
Performance Metrics
Performance Highlights
2.5 kHz
Current Loop Response
1.6 kHz
Speed Loop Response
0.1 us
Bus Sync Accuracy
Technical Specifications
I/O Configuration
- 6 x DC24V optocoupler isolated inputs
- 4 x optocoupler isolated outputs
- Power Supply
- 220V AC (-15% to +10%), 50-60Hz
- Rated Current
- 10 A
- Supported Protocols
- EtherCATCANopen
Safety & Features
Advanced Control Features
Active Resonance SuppressionEnd Jitter SuppressionFriction CompensationGroove Torque CompensationWeak Magnetic Observation
- Safety Functions
- SS1SS2SBCSTO
Operating Environment
Environmental Conditions
| Parameter | Range |
|---|---|
| Operating Temp | 0-45°C |
| Storage Temp | -20-65°C |
| Humidity | 20-85% RH |
| Altitude | < 1000m |
