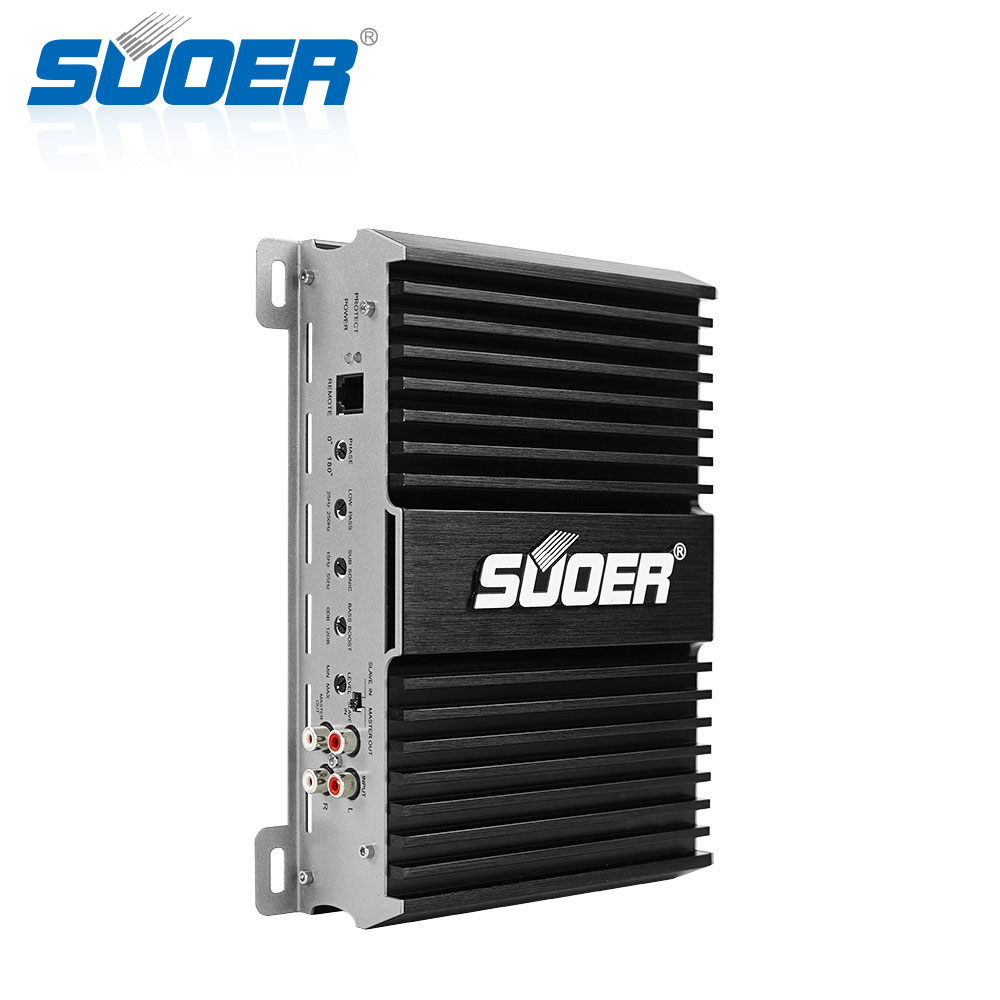

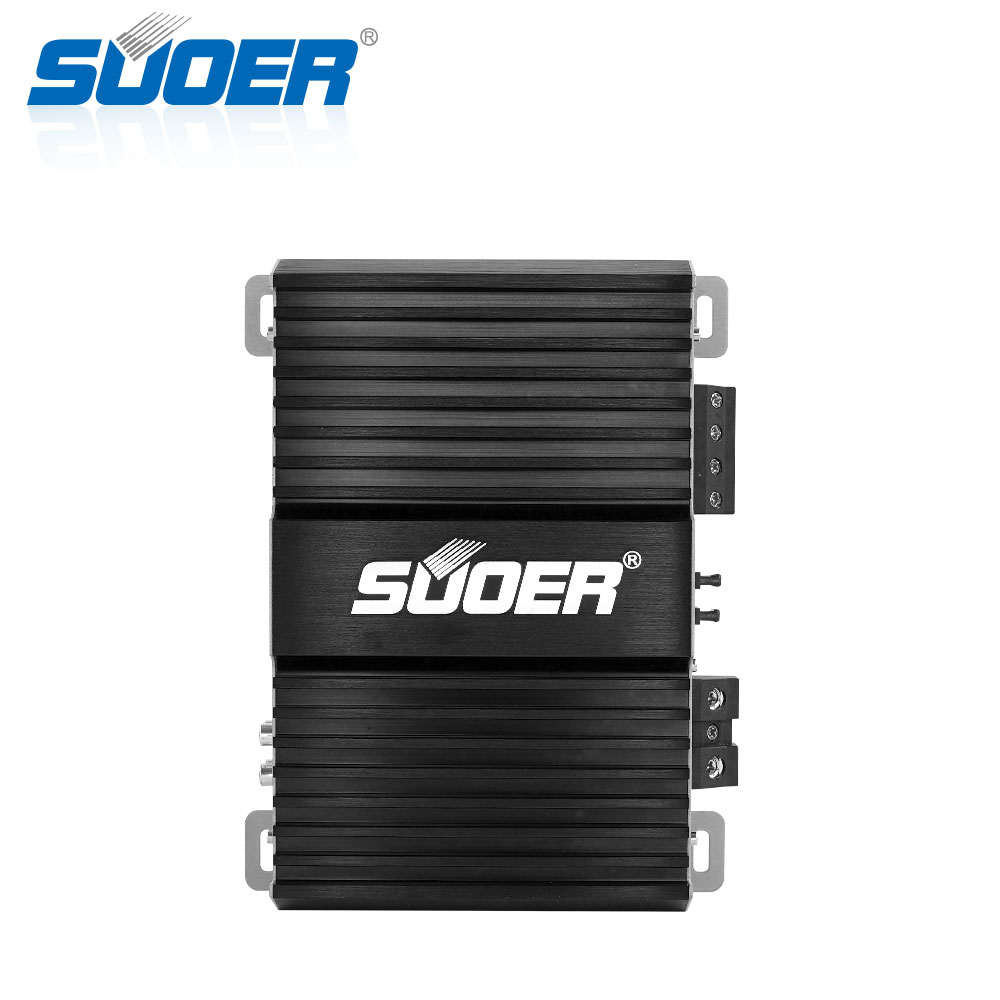

1500W Monoblock Class D Car Amplifier
This monoblock Class D car amplifier provides substantial power to subwoofer systems. Its efficient Class D circuitry minimizes heat and maximizes power output.
Technical Specifications
Product Overview
High-Performance Monoblock Class D Amplifier
This 1500W Monoblock Class D car amplifier is engineered to deliver substantial power and clean audio to high-demand subwoofer systems. Featuring a high-efficiency Class D design, it minimizes heat generation while maximizing output, making it ideal for car audio enthusiasts seeking deep, impactful bass. The robust all-metal panel construction ensures durability and efficient heat dissipation for long-term reliability in various vehicle configurations.
Performance Metrics
Power Performance
1,500 W
Maximum Power
500 W
RMS Power (1-Channel)
Amplifier Class
Class D
Audio Tuning & Controls
- Low Pass Filter Range
- 24Hz - 250Hz
- Subsonic Filter Range
- 10Hz - 55Hz
- Bass Boost
- 0dB - 12dB
- Phase Adjustment
- 0° to 180°
Connectivity & Integration
Interface Configuration
- Master/Slave configuration support
- Slave In / Master Out ports
- L/R RCA Inputs
- Remote level control port
Protection & Reliability
- Safety Features
- Short Circuit ProtectionOverload ProtectionThermal Overload ProtectionFuse Protection
Physical Construction
Status Indicators
- Power Indicator LED
- Protect Mode LED
- Chassis Material
- All-metal panel with wire drawing finish
