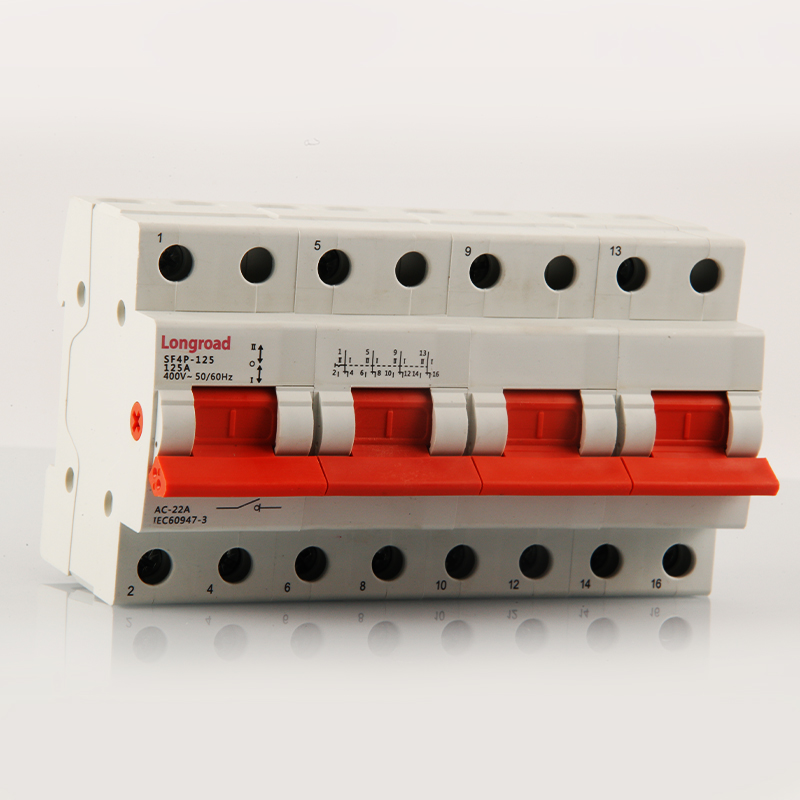

125A Heavy Duty DIN Rail Changeover Switch
This changeover switch is suitable for AC 50/60 Hz, rated voltage 230/400V and rated current 63A to 125A. It can be used for the changeover of two power supplies or loads, and can realize the circuit changeover function and isolation switch function.
Technical Specifications
Overview
Heavy Duty DIN Rail Changeover Switch
This heavy-duty changeover switch is engineered for reliable power source management in electrical panels and distribution boards. Designed for DIN rail mounting, it offers robust performance with a clear I-0-II position indicator for safe and intuitive operation. Compliant with international standards, this unit ensures high durability for both electrical and mechanical cycles.
Electrical Ratings
Rated Current
125 A
Max Rated Current
Voltage Specifications
- Rated Voltage (Ue): 230/415V
- Rated Insulation Voltage: 500V
- Rated Impulse Withstand Voltage: 4000V
- Rated Frequency
- 50 Hz
Performance & Durability
Durability
| Metric | Cycles |
|---|---|
| Electrical Durability | 20,000 |
| Mechanical Durability | 20,000 |
- Tightening Torque
- 4 Nm
Compliance
- Compliance Standards
- IEC60947-3IEC/EN 60669-1
Configuration
Available Pole Configurations
2P3P4P
