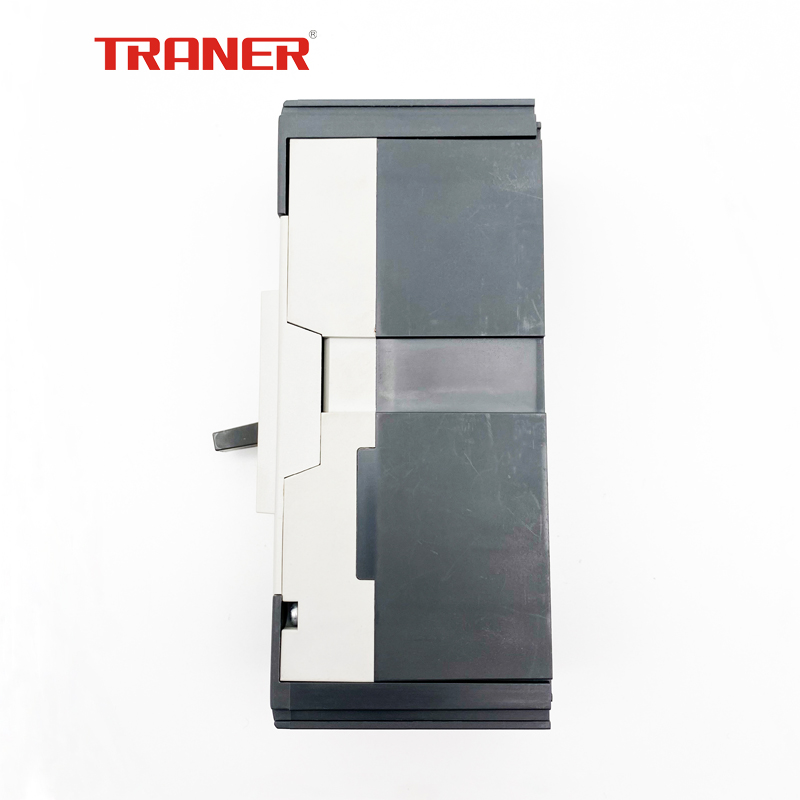

125A 2-Pole Molded Case Circuit Breaker
This molded case circuit breaker is rated for 125A and features 2 poles. It is designed for reliable circuit protection in various industrial and commercial applications.
Technical Specifications
Product Overview
Professional Grade Molded Case Circuit Breaker
This 2-pole molded case circuit breaker is engineered for reliable overcurrent and short-circuit protection in low-voltage distribution systems. It complies with international IEC/EN 60947-1 and 60947-2 standards, ensuring high performance and safety. Designed with a compact footprint, this series offers adjustable current settings for precise operational control in industrial and commercial electrical environments.
Electrical Ratings
Rated Current
- 15
- 20
- 30
- 40
- 50
- 60
- 75
- 80
- 100
- 125
Short-Circuit Breaking Capacity (Icu)
35 kA
At 240V
18 kA
At 415V
- Rated Operational Voltage
- 240/415V AC
Standards & Environment
Operating Conditions
- Ambient temperature: -5°C to +55°C
- Relative humidity: 45% to 85%
- Altitude: Up to 2000m
- Non-corrosive atmosphere
- Compliance Standards
- IEC/EN 60947-1IEC/EN 60947-2
Technical Specifications
Mechanical & Electrical Performance
| Attribute | Value |
|---|---|
| Poles | 2 |
| Mechanical Life | 8500 cycles |
| Electrical Life | 1500 cycles |
| Insulation Voltage (Ui) | 1000V |
| Impulse Withstand Voltage (Uimp) | 8kV |
