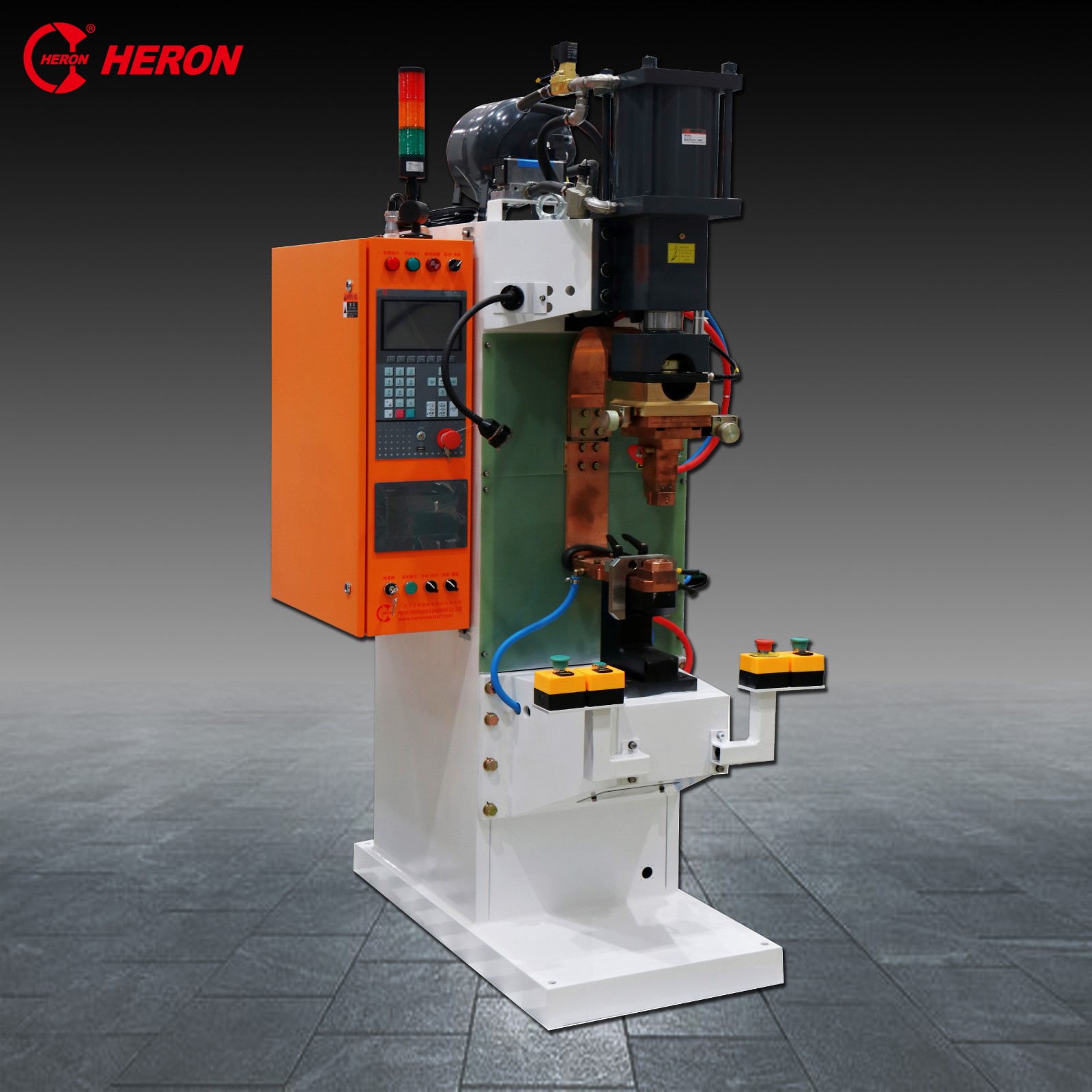

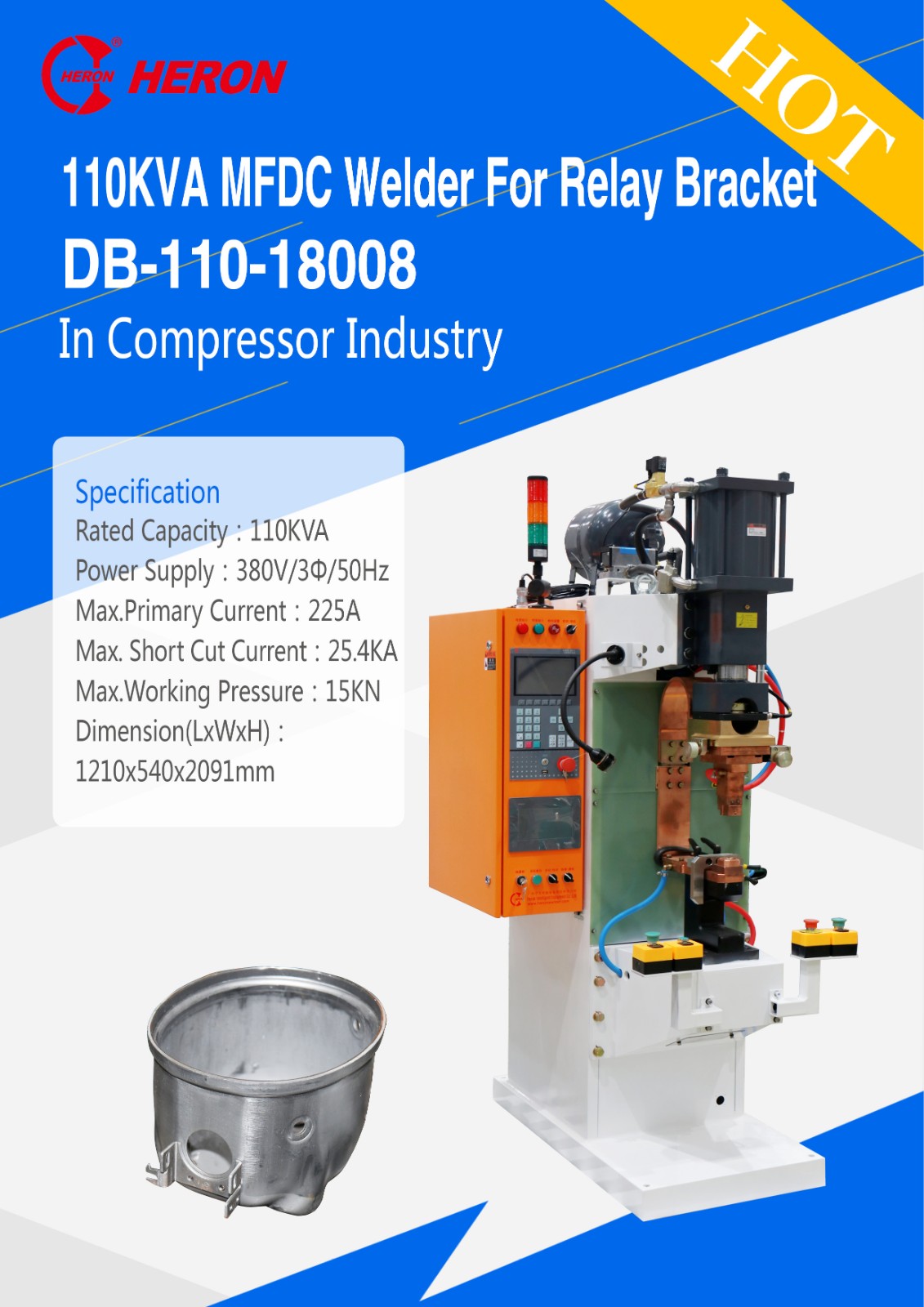

110KVA MFDC Resistance Welder for Relay Brackets
The 110KVA MFDC welder is designed for welding relay brackets with precision. Utilizing medium frequency direct current (MFDC) technology, it ensures efficient and consistent welding performance.
Technical Specifications
Overview
High-Precision MFDC Welding for Compressor Components
This 110KVA Medium Frequency Direct Current (MFDC) welder is specifically engineered for the high-volume production of relay brackets within the compressor industry. Utilizing advanced MFDC technology, it delivers precise and efficient welding performance with reduced energy consumption compared to traditional systems. The machine features a robust industrial construction and advanced control systems to ensure consistent, high-quality welds for critical assembly applications.
Performance Highlights
Key Performance Metrics
110 KVA
Rated Capacity
15 KN
Max Working Pressure
25.4 KA
Max Short Circuit Current
Technical Specifications
Electrical Requirements
| Parameter | Value |
|---|---|
| Power Supply | 380V / 3 Phase / 50Hz |
| Max. Primary Current | 225A |
| Welding Technology | Medium Frequency Direct Current (MFDC) |
Physical Characteristics
- Equipment Dimensions
- 1210 x 540 x 2091 mm
- Model Number
- DB-110-18008
Operational Features
Key Features
- Advanced control panel for easy parameter adjustment
- Specialized fixturing for relay bracket assembly
- Integrated safety features for operator protection
- Robust construction for high-volume industrial environments
- Engineered for consistent and reliable weld quality
Applications
Target Industry
Compressor IndustryRelay Bracket ManufacturingResistance Welding
