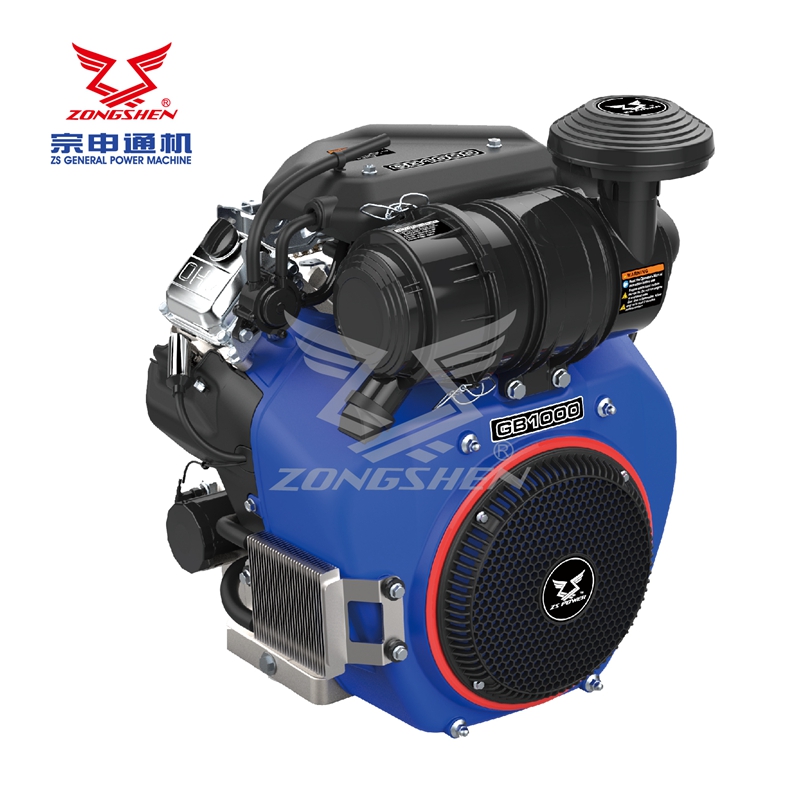

1000 cc Horizontal Shaft Engine
This horizontal shaft engine is designed for power generation applications. It features a robust construction ensuring reliable performance and easy integration into various equipment setups.
Technical Specifications
Overview
High-Performance V-Twin Engine
This 1000 cc horizontal shaft engine is engineered for heavy commercial demands, featuring a powerful V-Twin cylinder design. It is built for reliability in challenging environments, incorporating a spiral double-layer air filter that ensures optimal performance even in dusty conditions. Designed for versatility, this engine is an ideal power source for generators, pressure washers, and air compressors.
Performance
Rated Power
24 Kw
Rated Power (Kw)
33 HP
Rated Power (HP)
- Displacement
- 999 cc
- Maximum Torque
- 71 N.m
- Maximum Output Speed
- 3900 r/min
Technical Specifications
- Cylinder Bore x Stroke
- 90 x 78.5 mm
- Idle Speed
- 1650 ± 150 r/min
- Starting System
- Electrical
- Fuel Consumption Rate
- 360 g/kW·h
Maintenance & Capacity
- Engine Oil Capacity
- 2.5 L
- Recommended Oil
- SAE 10W-30
Physical Dimensions
- Dimensions (L x W x H)
- 515 x 465 x 575 mm
- Net Weight
- 54 kg
Compliance & Logistics
Certifications
CEEuro IIEuro VEPASASO
Container Load Capacity
| Container Type | Quantity |
|---|---|
| 20'GP | 81 |
| 40'GP | 171 |
| 40'HQ | 228 |
- Typical Applications
- Pressure WasherGeneratorAir Compressor
