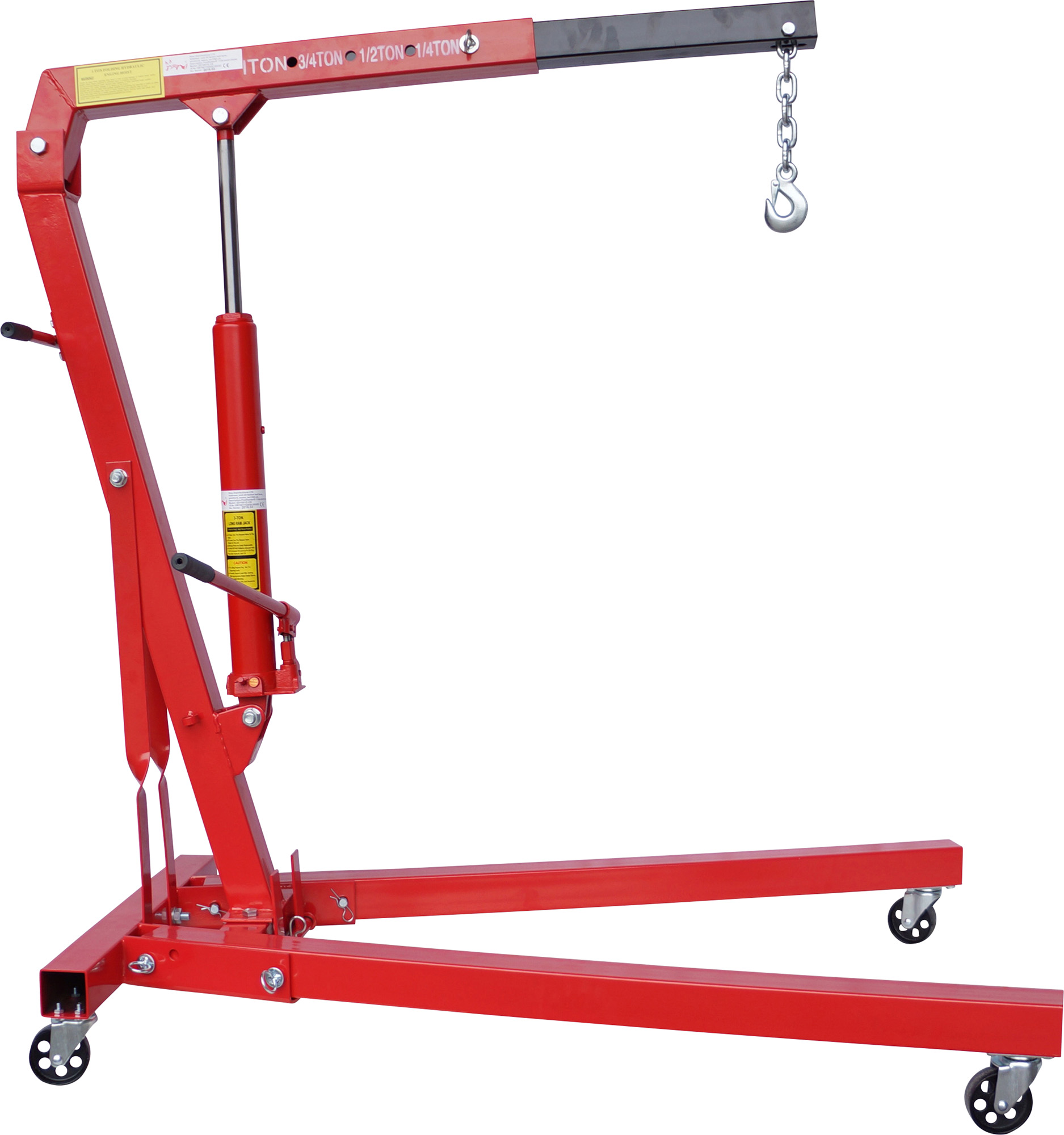

1-Ton Foldable Hydraulic Engine Crane
This 1-ton foldable hydraulic engine crane is designed for lifting and positioning engines and other heavy components. Its foldable design allows for convenient storage, and it features a robust hydraulic system for smooth, controlled lifting.
Technical Specifications
Overview
Professional 1-Ton Hydraulic Lifting Solution
This 1-ton foldable hydraulic engine crane is a versatile and essential tool for any automotive or mechanical workshop, designed for lifting and positioning engines and heavy components. It features a robust hydraulic system for smooth, controlled lifting and a heavy-duty steel frame for maximum durability. The foldable design ensures convenient storage in space-constrained environments, while the adjustable boom provides flexibility across various lifting capacities.
Key Performance Metrics
Lifting Capacity
1 Ton
Maximum Capacity
1,000 kg
Weight Rating
Technical Specifications
- Construction Material
- Heavy-duty steel construction
- Mobility
- 4 swivel casters for easy maneuvering
- Product Weight
- 71 kg
- Adjustable Boom Settings
- 1 Ton3/4 Ton1/2 Ton1/4 Ton
Safety & Features
Safety Systems
- Clevis grab hook with safety latch
- Pressure relief valve to prevent overloading
- Locking mechanism to secure boom position
- Sturdy base for stability during operation
Storage & Logistics
Package Dimensions
| Package No. | Dimensions (mm) |
|---|---|
| Box 1 | 760 * 380 * 160 |
| Box 2 | 1400 * 300 * 200 |
- Foldable
- Yes
Applications
Primary Applications
Engine SwapsAutomotive RepairIndustrial LiftingWorkshop Maintenance
