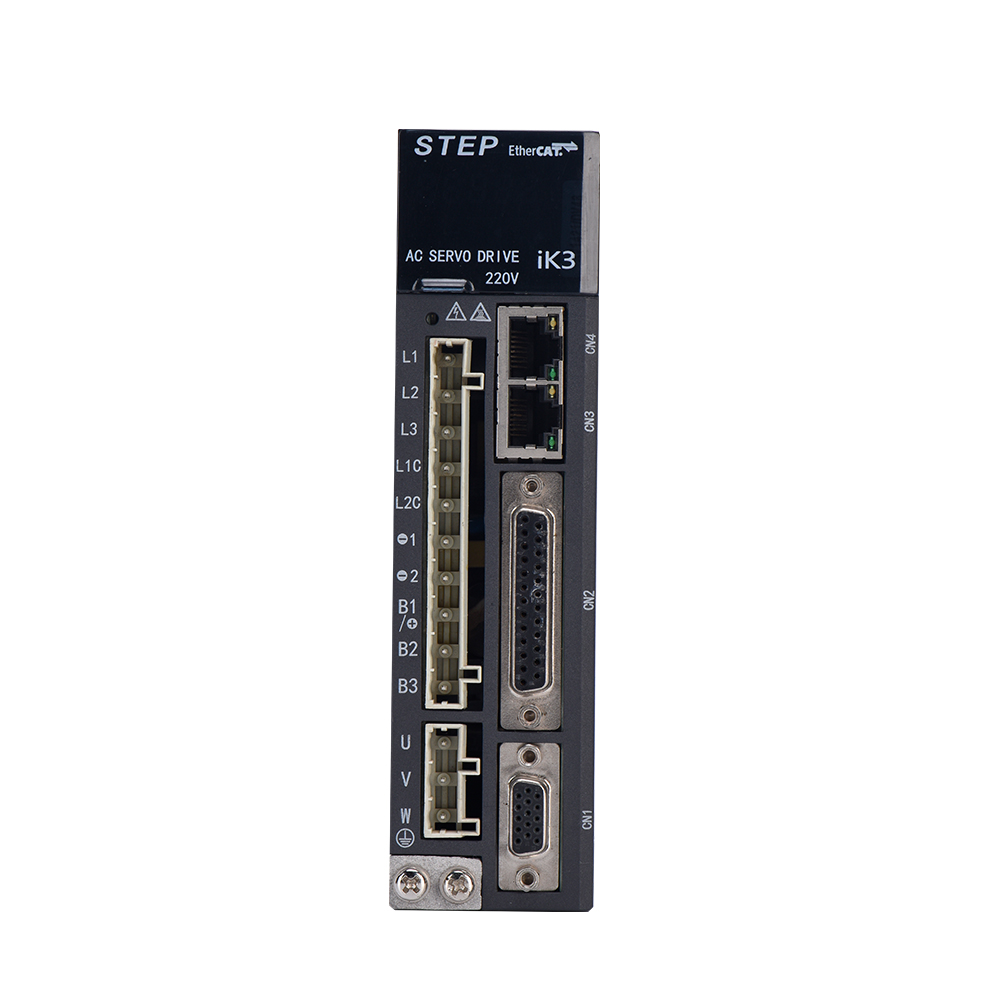

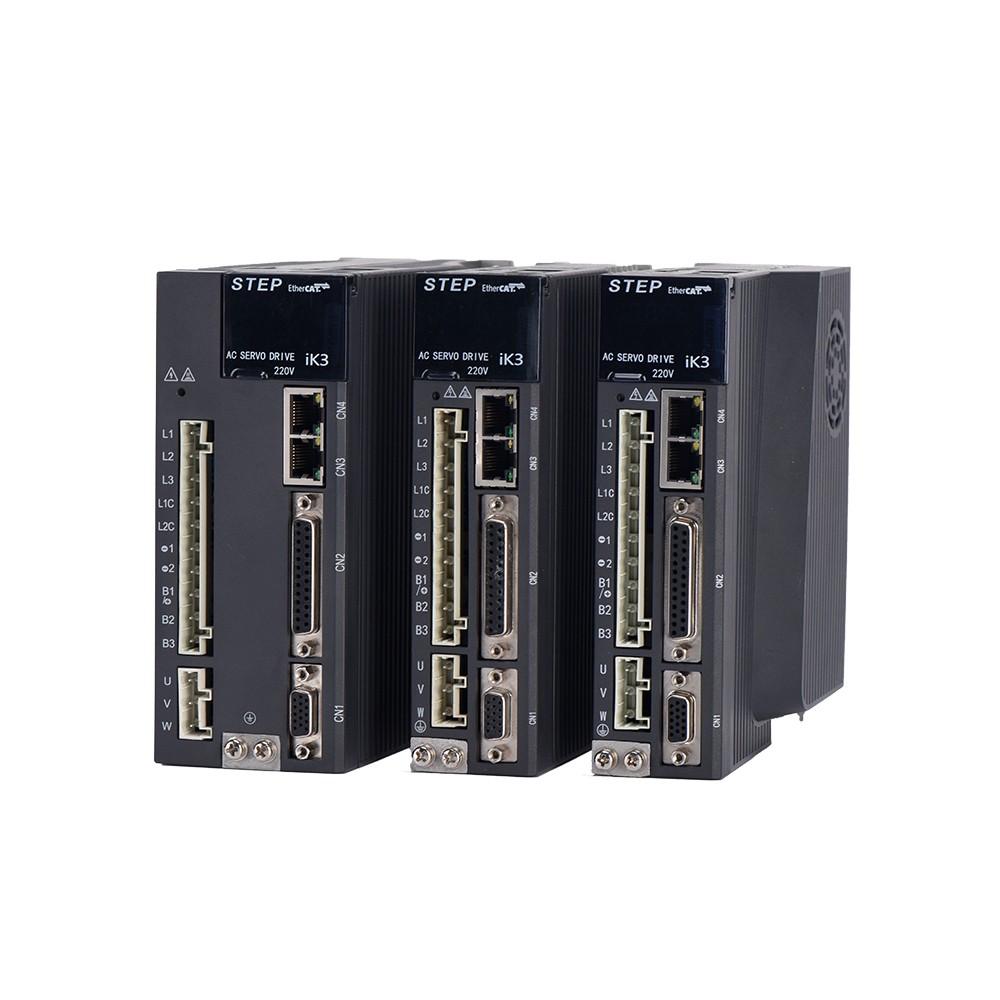

0.75kW Universal Bus Servo Drive
This 0.75kW universal bus servo drive delivers precise motor control for industrial automation applications. It supports EtherCAT communication and adapts to various mechanical structures.
Technical Specifications
Overview
High-Performance Universal Bus Servo Drive
This 0.75kW universal bus servo drive is engineered for high-precision motion control, featuring industry-leading frequency responses in both current and speed loops. With support for standard EtherCAT and CANopen protocols, it ensures seamless integration into complex automation environments. Built with a three-proof paint process and international safety standards like STO, this drive offers both robust durability and reliable operation in demanding industrial applications.
Performance Metrics
Key Performance Metrics
2.5 kHz
Current Loop Freq. Response
1.6 kHz
Speed Loop Freq. Response
0.1 us
Bus Sync Accuracy
16 bit
Current Sampling Accuracy
Technical Specifications
Electrical Ratings
| Parameter | Specification |
|---|---|
| Power Rating | 0.75kW |
| Rated Current | 5.5A |
| Main Power Supply | 220V AC (-15~+10%, 50/60Hz) |
| Encoder Feedback | ABZ Incremental / Absolute |
- Communication Protocols
- EtherCATCANopen
Environmental Conditions
Operating Environment
- Working temperature: 0~45°C
- Storage temperature: -20~65°C
- Humidity: 20~85%RH (non-condensing)
- Vibration: 5.8m/s² (10~60Hz)
- Altitude: Below 1000m
Safety & Features
Advanced Protection
SS1/SS2/SBC SafetyActive Resonance SuppressionEnd Jitter SuppressionFriction CompensationGroove Torque Compensation
