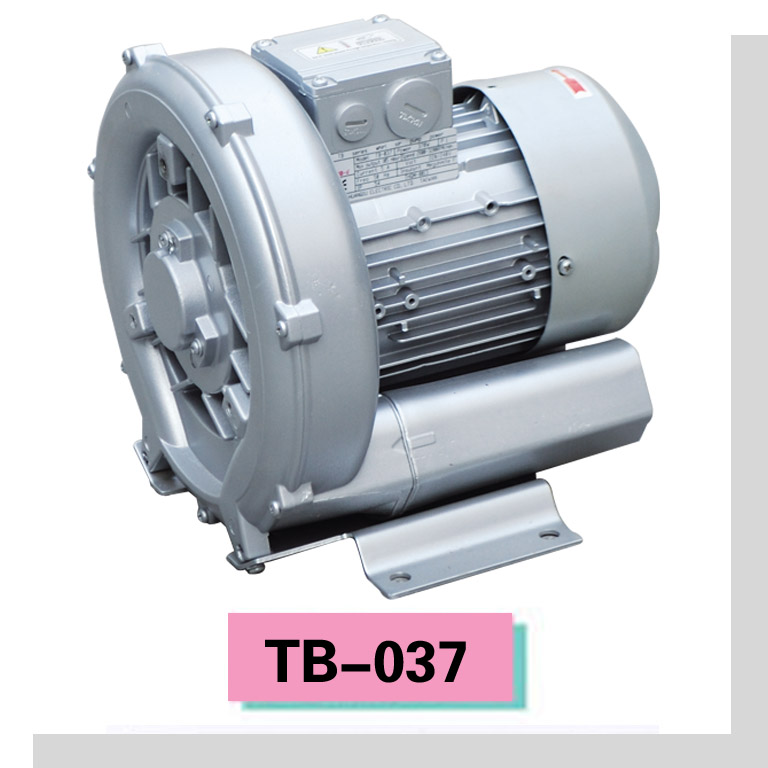

0.37kW Single-Phase High Pressure Blower
This 0.37kW single-phase high pressure blower provides a maximum pressure of 120mbar and an airflow of 1.3m3/min. Its robust aluminum alloy construction and dynamically balanced impeller ensure efficient operation in demanding industrial environments.
Technical Specifications
Overview
High-Performance Industrial Blower
This high-pressure blower is engineered for demanding industrial environments, featuring a robust aluminum alloy casing produced via precision pressure die-casting. The design incorporates a dynamically balanced impeller and Japanese fittings to ensure long service life, stability, and low-noise operation. With a precisely calculated vane wheel, this unit delivers a 20% performance improvement over similar standard models, making it an efficient choice for continuous-duty applications.
Technical Specifications
Rated Power
0.37 kW
Rated Power
Performance Metrics
| Metric | Value |
|---|---|
| Max Pressure | 120 mbar |
| Max Flow | 1.3 m³/min |
| Working Pressure | 110 mbar |
| Weight | 11 kg |

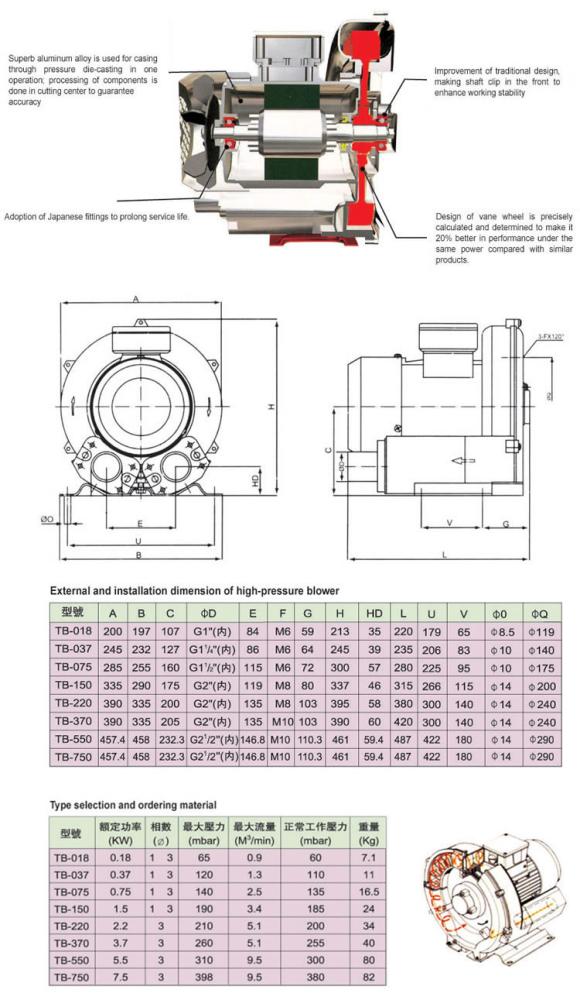

Construction & Design
Key Design Features
- Front shaft clip for enhanced stability
- Precision-calculated vane wheel
- High-accuracy component processing
- Japanese internal fittings
- Casing Material
- Aluminum alloy (pressure die-casting)
Applications
- Common Applications
- Water treatment aerationElectroplating bath agitationDust removalVentilationFood processingGas transmissionFeed collection
Compliance
Certifications
CE CertifiedLow Voltage Directive 2006/95/EC
Applied Standards
- EN60334-1:2004
- EN60204-1:2006
