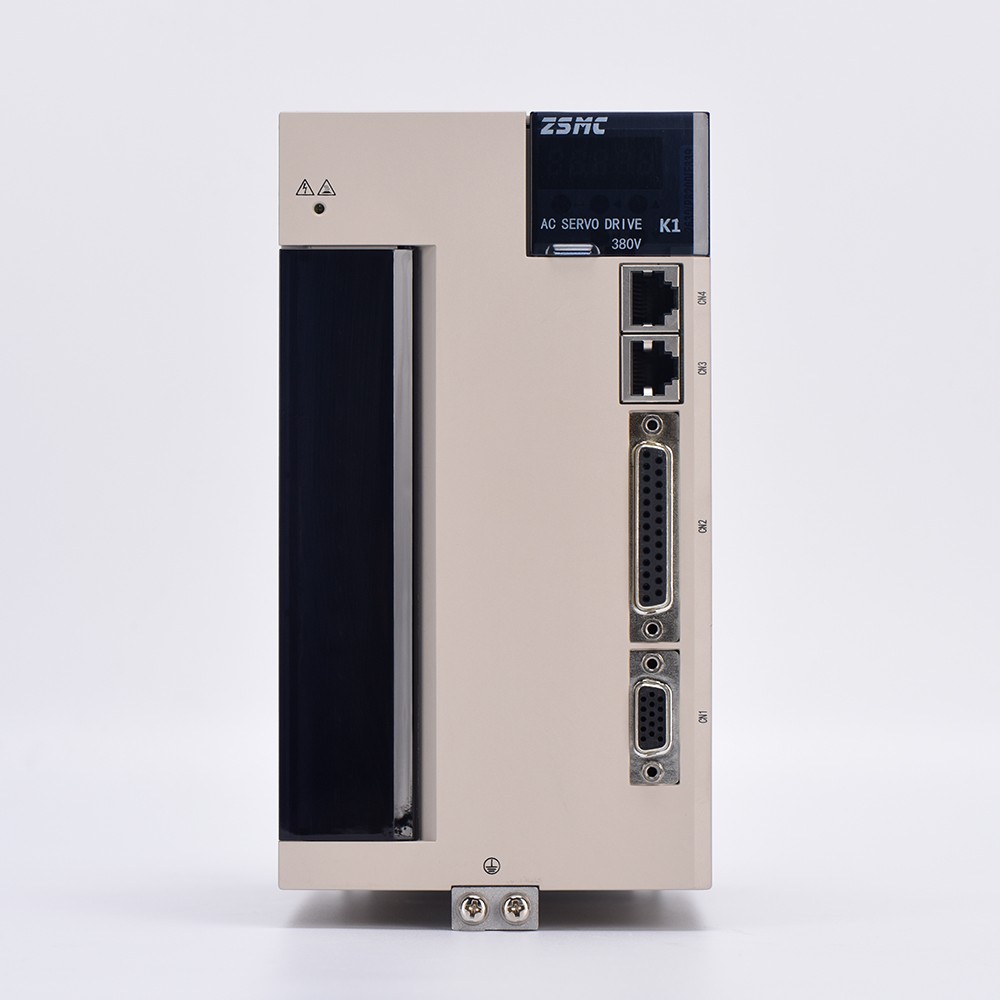

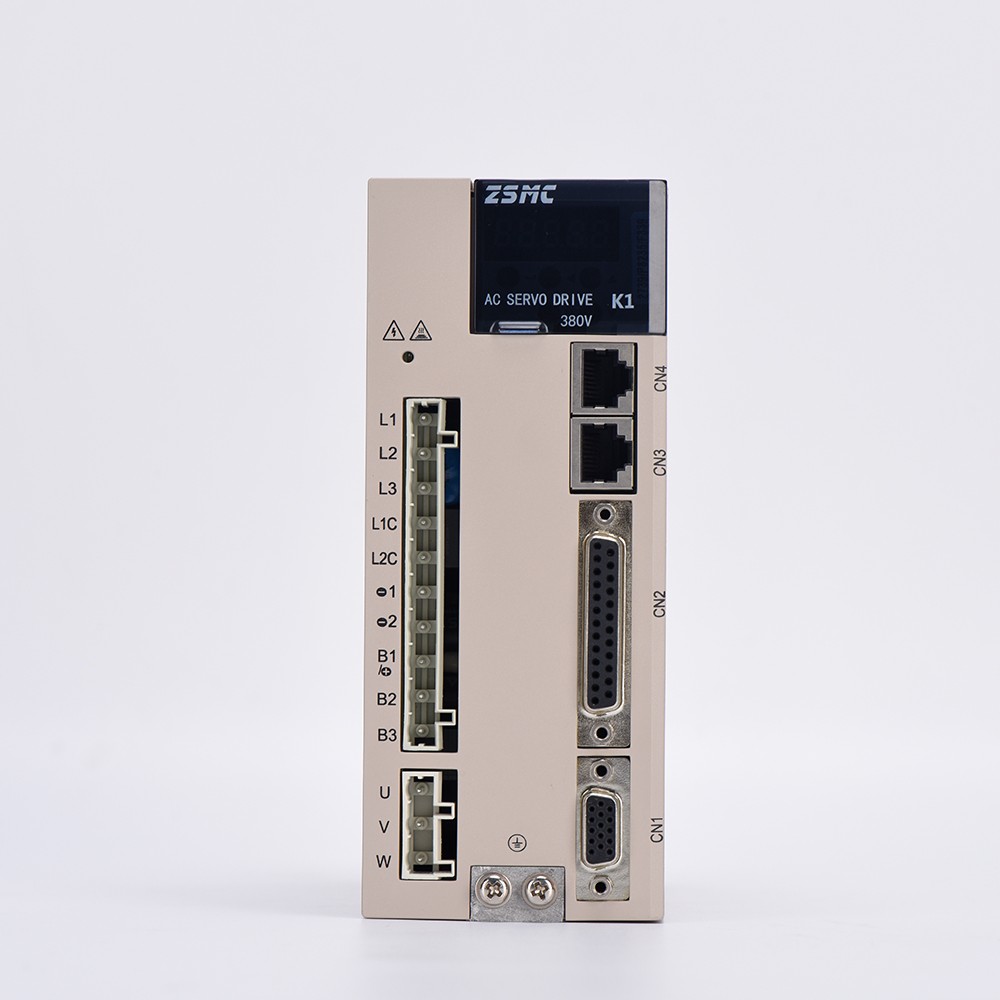

0.2kW Servo Drive with CANopen
This 0.2kW servo drive allows continuous multi-path planning for motion control. It automatically determines load inertial mechanical properties, shortening commissioning time.
Technical Specifications
Product Overview
High-Performance Servo Drive Solution
This 0.2kW servo drive offers advanced motion control through intelligent position planning and automatic load inertia determination. Engineered for stability, it features mechanical resonance analysis and trap filters to ensure smooth operation even in complex mechanical systems. With support for CANopen communication and multiple control modes, it provides precise and reliable performance for diverse industrial automation tasks.
Technical Specifications
Performance Metrics
0.2 kW
Power Rating
2 A
Rated Current
3 times
Overload Capacity
Communication
CANopenModbus
- Supported Control Modes
- Position ControlSpeed ControlTorque ControlInner SpeedPosition/SpeedPosition/TorqueSpeed/TorqueSpeed/Zero Clamp
Environmental & Operational
Operating Conditions
| Parameter | Value |
|---|---|
| Working Temperature | 0 to 45°C |
| Storage Temperature | -20 to 65°C |
| Humidity | 20-85% RH (non-condensing) |
| Altitude | < 1000m |
System Integration
I/O Configuration
- 4 Optocoupler Isolated Inputs (DC24V)
- 3-Way Optocoupler Isolated Outputs
- 2 Differential Analog Inputs (±10V)
- 1 Single-ended Analog Input (0-10V)
